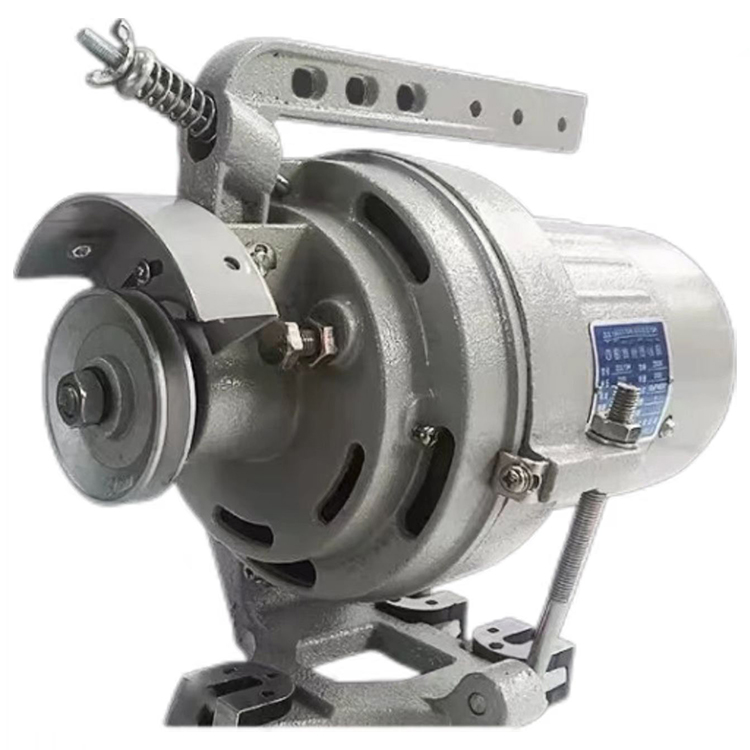

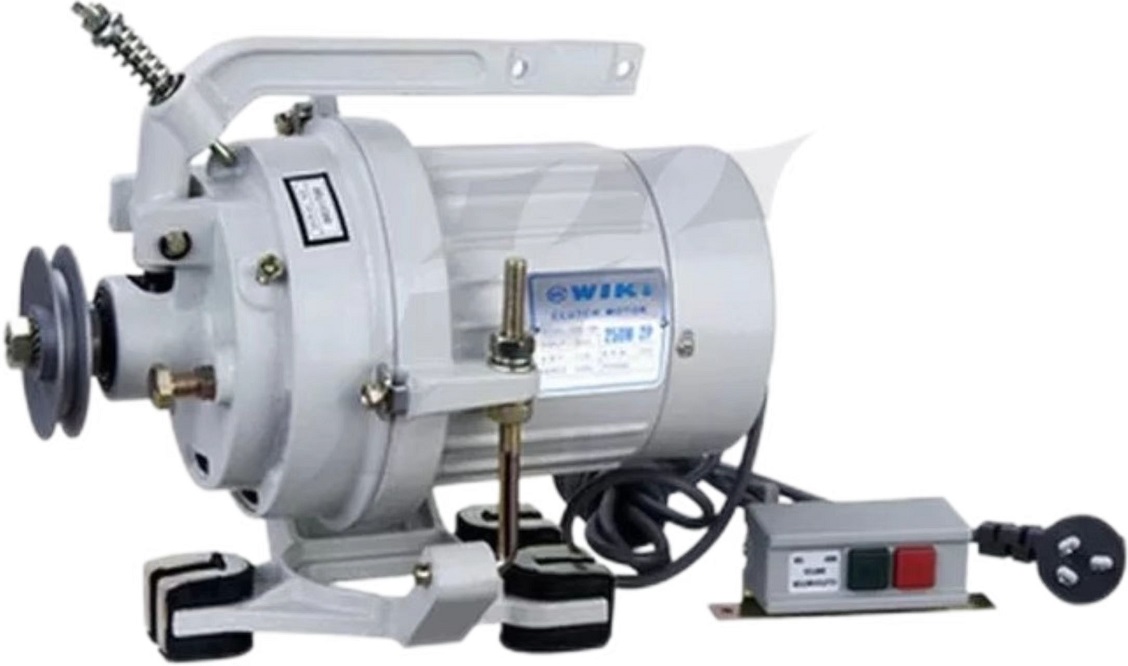

Clutch motor for sewing machime
- Price： 31USD （Original Price：39USD）
- MOQ： 100
- Stock： 1900
-
Parameters：
400*300*250MM/16KG/1pc
Clutch motor for sewing machime The main function of the sewing machine clutch motor is to control the clutch of the sewing machine, thereby enabling the sewing machine to start, stop and adjust its speed. During the sewing process, the clutch motor achieves different sewing effects by regulating the speed and controlling the sewing process. For example, when rapid sewing is required, the speed of the clutch motor can be increased; while when precise sewing is needed, the speed can be reduced.
Product Description
PRODUCT DESCRIPTION
Clutch motor, suitable for various industrial sewing machines used in garment factories, including flat machines, synchronous machines, hemming machines, edge-punching machines, double-needle machines, 8B high-head machines, 246 high-head machines, 801 peeling machines, and also suitable for various small grinding machines and small processing lathes - etc.
Single-phase motor parameters: Voltage: 220V 2P Power: 250W.
Three-phase motor parameters: Voltage: 380V 2P Power: 370W.
There are slight differences in rotational speed for different factories. Some are 2850 rpm, and some are 2800 rpm. In fact, there is almost no difference in usage, because when using, a belt pulley needs to be purchased separately for matching use. The diameter size of the belt pulley is 55MM, 60MM, 65MM, 70MM, 75MM, 80MM and 90MM, etc. The size of the belt pulley has a significant impact on the rotational speed of the machine. Each motor is very convenient to adjust forward and reverse.
