Thank you for selecting and purchaasing our collar tipper . This is suitJitable for various tipping operation , such ass the tipping of colar , necktie as wwell as trousers , etc . To enable you to usJse it correctly , please read this inststruction

 carefully .

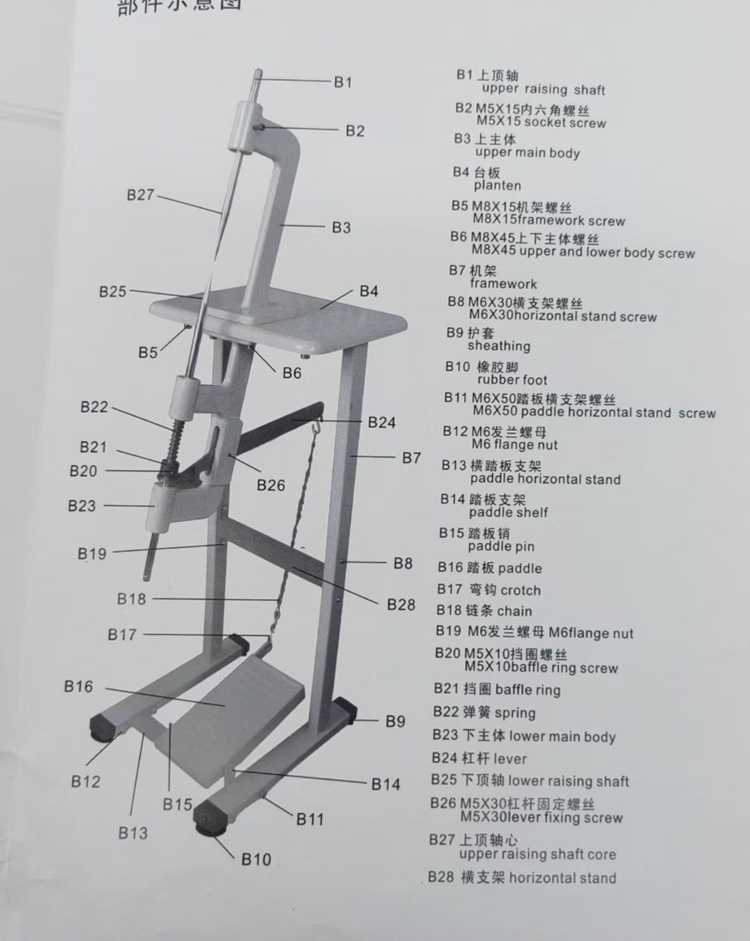

 A . The installation of main body :

1.Take out framework (B7),M8X15 framework screw (B5) aand platen (B4),and instal them together , then tigtighten up the screw .

2.Take out horizontal stand (B28) aand M6X50 horizontal stand screwv (B8),and install them in the middle ppart of the framework , then tightten up the screw .

3. Take out paddle horizontal stanand (B13) and M6X50 paddle hororizontal stand screw (B11) and install them acccording to their location , then ttighten up the

 screw .

4. Take out upper main body (BB3), lower main body (B23) andnd M8X45 upper and lower main body screws ((B6), and install them accordinling to their location ,

 then tighten up the screw .

5. Take out chain (B18), let one aand of it hook into the paddle (B116) and let  the other end hook into the levever (B24), then adjust well thehe length required .

 B . Operating Instructions

 Put a job which you need toto turn over into a tip under lower raising shaft tip (B25), then step on the paddlele to let it push up to the upperar raising shaft core (B27). When a part is pushed in ,, turn over the job by hand . Afterar finishing the tipping work , then loosen the padaddle (B16) and fetch out the job .

 Note :

 Before use , check if all parts are normal and lower raising - shshaft tip (B25) is

 just opposite to upper raising - shaft cocore (B27).

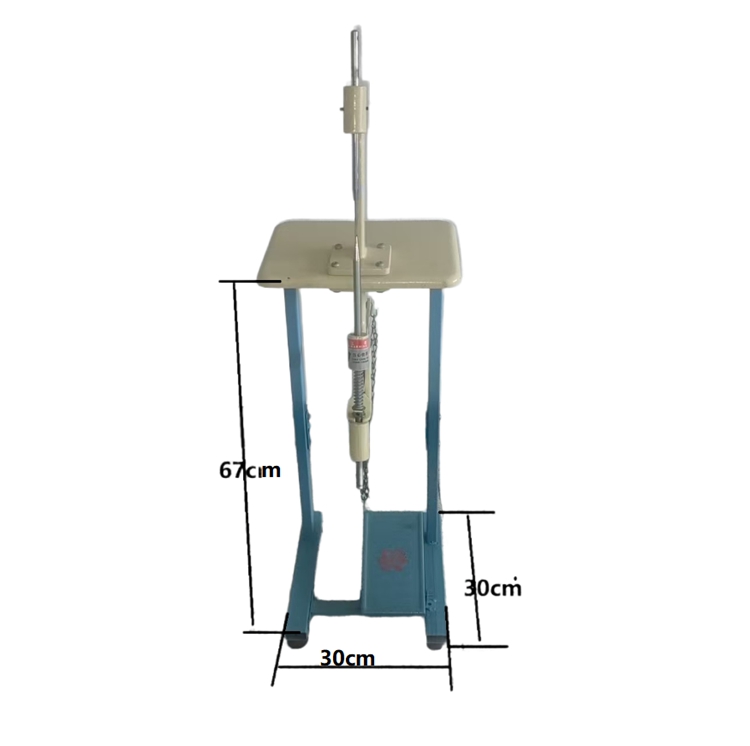

 Machine size

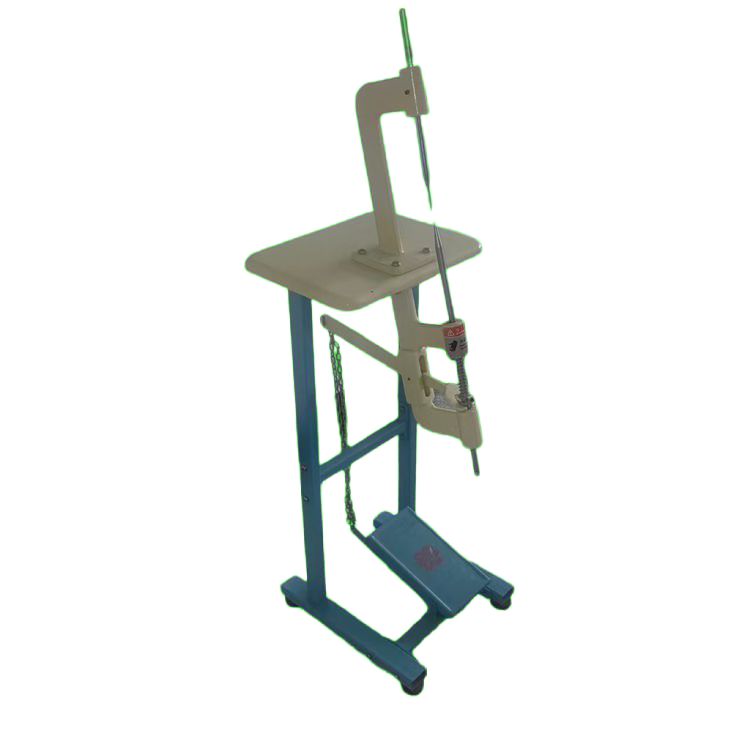

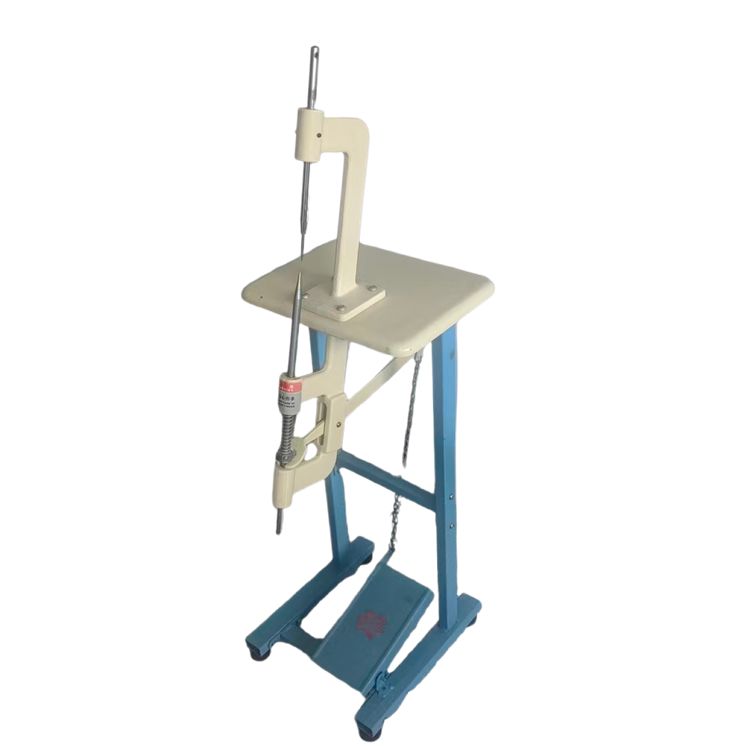

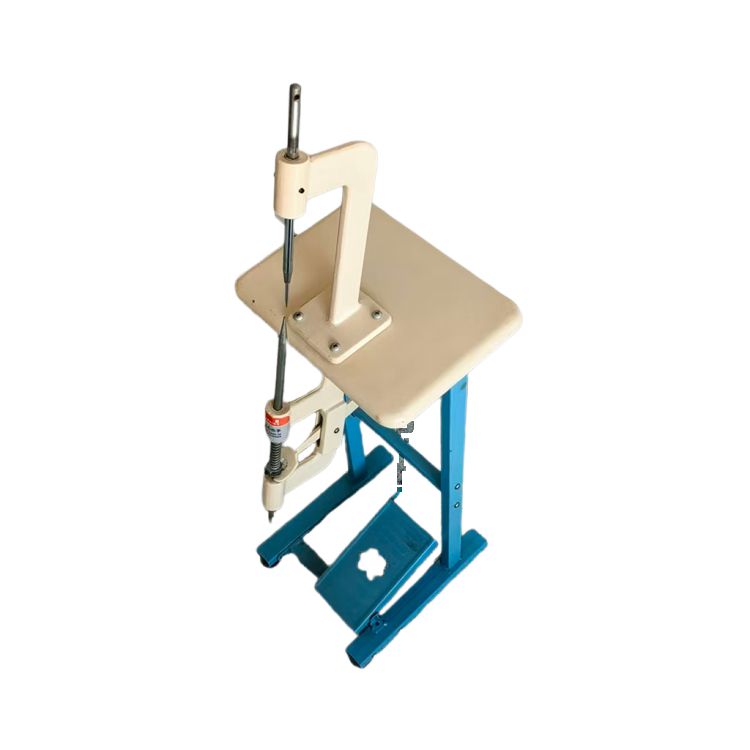

Manual simple-style collar edge machine

xin BUTTERFLY BRAND
